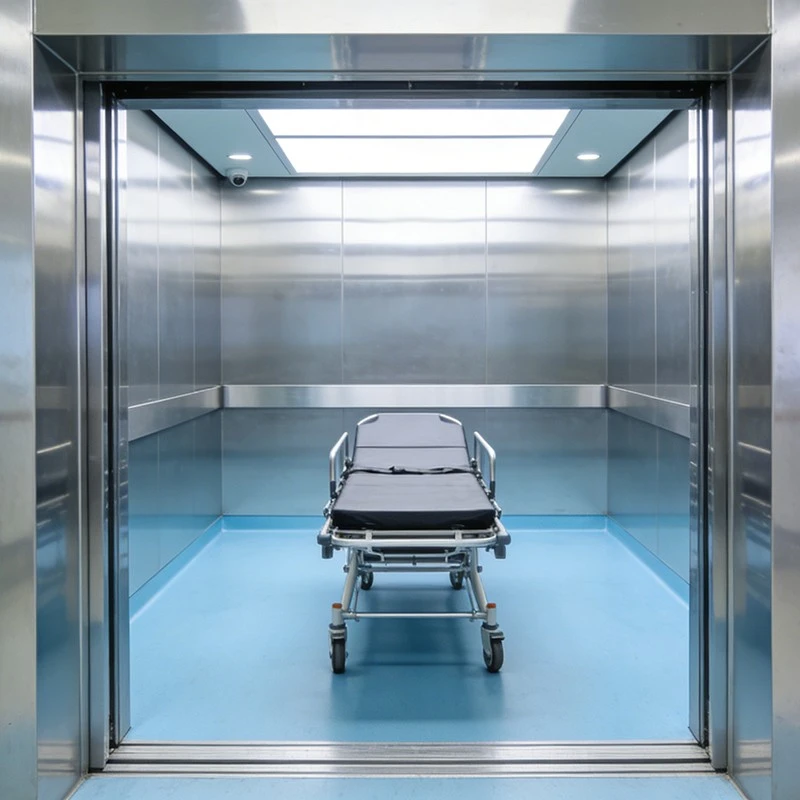

Hospital Bed Elevator
The load capacity of the Webstar Hospital Bed Elevator ranges from 1000-2000 kg. It can easily accommodate various hospital beds, wheelchairs and medical equipment. This device adopts advanced permanent magnet synchronous technology and is available in two types: small machine room and no machine room. This not only saves energy and resources, but also significantly reduces construction space and costs, and can meet the civil engineering needs of different medical institutions.
Product Overview
Webstar Hospital Bed Elevator is an indispensable logistical support equipment in medical facilities. It ensures the safety of patient transfers and the efficiency of medical operations. If you have any requirements, please contact us.
Product Details
Webstar Hospital Bed Elevator has a load capacity ranging from 1000-2000 kg, which can easily accommodate various hospital beds, wheelchairs and medical equipment. This device adopts advanced permanent magnet synchronous technology and is available in two types: machine room and no machine room. It not only saves energy and resources but also significantly reduces construction space and costs, meeting the civil engineering needs of different medical institutions. The elevator operates smoothly during both movement and stopping. It is equipped with a complete emergency protection system, including emergency power supply during power outages and emergency call functions. In case of sudden power failure or malfunction, it can quickly activate the emergency mode to ensure the safe evacuation of personnel in the elevator. At the same time, the elevator car is made of anti-slip stainless steel material, which is easy to clean and meets the hygiene requirements of the medical environment, effectively reducing the risk of cross-infection and balancing practicality and safety.
Webstar Hospital Bed Elevator is equipped with an automatic energy-saving LED lighting system. It will automatically switch on or off according to whether there are people in the elevator car, effectively saving resources. The interior space of the elevator car has been scientifically optimized by professional technicians, with sufficient working space reserved, facilitating medical staff to provide care services to patients during the transfer process.
As a professional brand deeply involved in the elevator industry - Webstar, with its advanced technology and strict quality control, ensures that every hospital bed elevator it produces complies with industry norms and standards. Webstar hospital bed elevators have been exported to 60 countries and are widely used in numerous medical institutions. With its professional technology and services, it has injected strong impetus into medical logistics support.



|
load capacity (kg) |
1000 |
1250 |
1350 |
1600 |
||||||||
|
speed (m/s) |
1.0 |
1.5 |
1.75 |
1.0 |
1.5 |
1.75 |
1.0 |
1.5 |
1.75 |
1.0 |
1.5 |
1.75 |
|
door open size (mm) |
1000 |
1000 |
1000 |
1300 |
||||||||
|
cabin size (mm) |
1100x2100 |
1300x2200 |
1400x2200 |
1400x2400 |
||||||||
|
shaft size (mm) |
2100x2500 |
2300x2600 |
2400x2600 |
2500x2900 |
||||||||
|
overhead height (mm) |
4500 |
4600 |
4700 |
4500 |
4600 |
4700 |
4500 |
4600 |
4700 |
4500 |
4600 |
4700 |
|
pit depth (mm) |
1500 |
1600 |
1700 |
1500 |
1600 |
1700 |
1500 |
1600 |
1700 |
1500 |
1600 |
1700 |
|
travel height (m) |
50 |
75 |
90 |
50 |
75 |
90 |
50 |
75 |
90 |
50 |
75 |
90 |
